Edit UltraScan Multi-WaveLength (MWL) Data

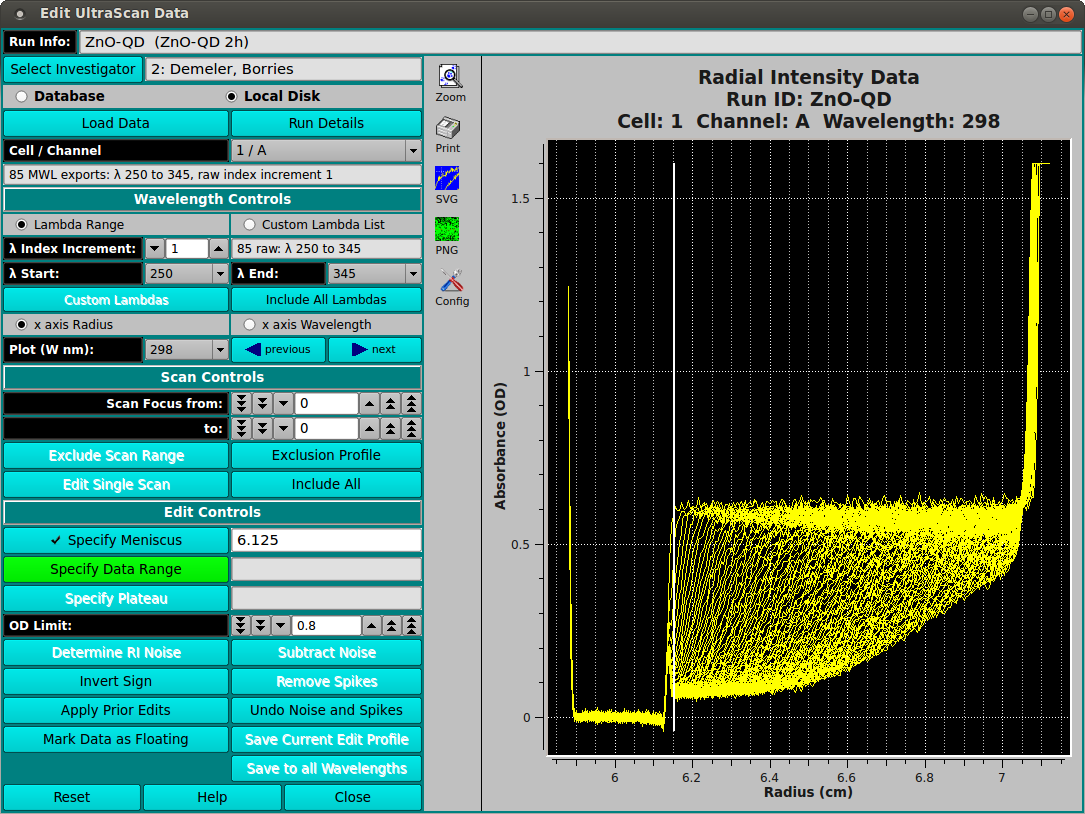

Where the data loaded in an editing session is comprised of multiple wavelengths (more than two), the main editor window is changed to the above form. Instead of selecting triples to edit, this MWL edit procedure consists of selecting Cell / Channel pairs and the wavelengths within those doubles. Once editing in the normal way has been completed, the user may save the edit for either the specific triple ("Save Current Edit Profile") or for all of the wavelengths of the current double ("Save to all Wavelengths").

Most of the edit controls for MWL are the same as for the standard Data Editor Window; and are not repeated here. The steps and control objects described herein are those specific to MWL processing.

Editing steps specific to MWL:

1. Step 1: Load data from the database or a local data directory. Select an entire runID so that MWL data is recognized as such.
2. Step 2: Select the Cell / Channel to be edited; specify the Lambda (wavelength) range to be edited; and select a single wavelength for display and edit.
3. Step 3: Specify editing parameters - such as Meniscus, Data Range, and Plateau - in the normal Control-Click way.
4. Step 4: Save editing for either the specific triple selected or to be applied to all wavelengths of a cell / channel double.

Functions specific to MWL:

• Cell / Channel Select the double for which to perform editing.
• Lamdba Range Select this radio button to indicate that wavelength selection will be by start/end/increment specification.
• Custom Lambda List Alternatively, select this radio button to indicate that wavelengths will be individually indicated in a list dialog.
• λ Index Increment: Select the wavelength range increment.
• λ Start: Select the wavelength range start value.
• λ End: Select the wavelength range end value.
• Custom Lambdas Click to bring up a list dialog in which individual output wavelengths can be enumerated.
• Include All Lambdas Reset the implied output wavelength range or list to the full set of loaded dataset values.
• x axis Radius Select this radio button to indicate that the plots of data should have an X axis of Radius (the default).
• x axis Wavelength Select this radio button to indicate that the plots of data should have an X axis of Wavelength; and, therefore, that each plot is for a selected Radius.
• Plot (W nm): Select the Wavelength (in NM) or (if the title of this button is "Plot (R cm):" when the "x axis Wavelength" radio button was selected) select the Radius (in CM) to plot and edit.
• (left arrow) previous Click to change the plot to the one for the previous Wavelength or Radius value.
• (right arrow) next Click to change the plot to the one for the next Wavelength or Radius value.
• Save Current Edit Profile Click this button (in the MWL case) to save the current edit for the current Cell / Channel / Wavelength only.
• Save to all Wavelengths Click this button to save the current edit for all wavelengths of the currently selected Cell / Channel.
