#include "us_project_gui.h"

Inheritance diagram for US_ProjectGui:

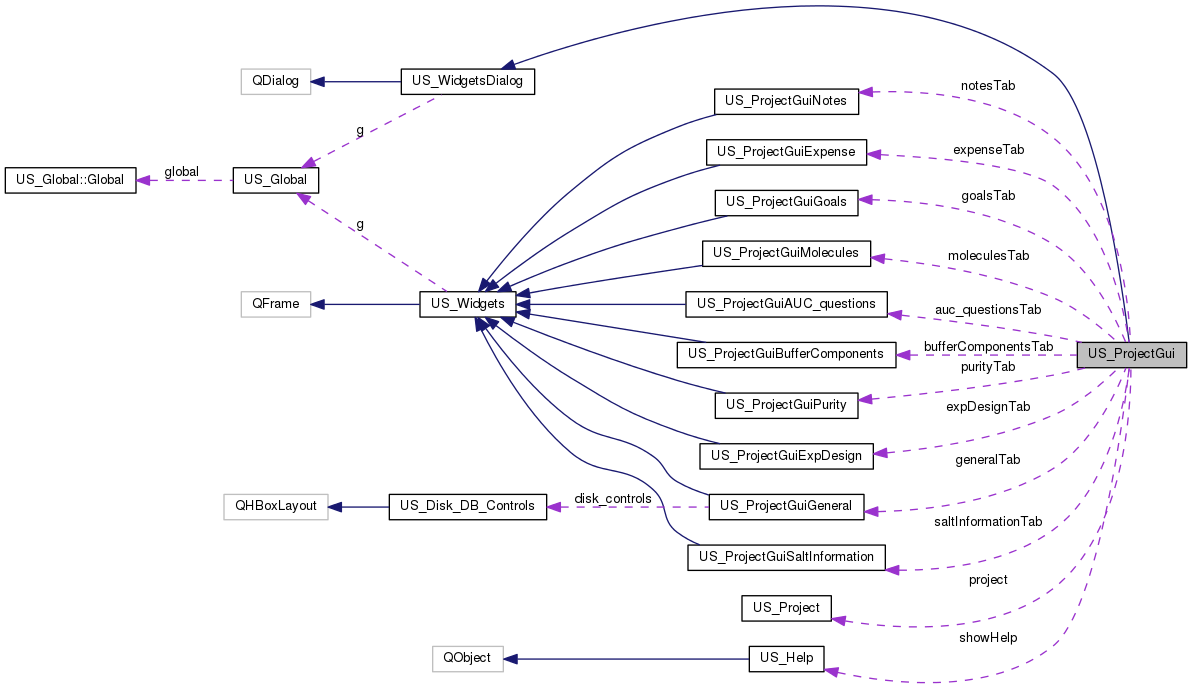

Collaboration diagram for US_ProjectGui:

Classes
class	ProjectInfo
	Information that is useful throughout US_ProjectGui. More...

Public Slots
void	newProject (void)
	Creates a new project. More...

void	load (void)
	Loads projects into the projects list widget. More...

void	selectProject (QListWidgetItem *)
	Handles when project listwidget item is selected. More...

void	saveDescription (const QString &)
	Updates the description associated with the current project. More...

void	saveProject (void)
	Saves the project information from all tabs to disk or db. More...

void	deleteProject (void)
	Deletes the currently selected project from disk or db. More...

void	source_changed (bool)
	Change data source (disk/db) More...

void	tabTextChanged (const QString &="")
	Helps to keep track if the text in any tab has changed. More...

Signals
void	updateProjectGuiSelection (US_Project &project)
	The signal that is emitted when the user chooses to accept the current choices. This information is passed back to the calling function. More...

void	cancelProjectGuiSelection (void)
	The signal that is emitted when the user chooses to cancel the current selection. In this case all previously-entered information is erased. More...

void	use_db (bool DB)

Public Member Functions
	US_ProjectGui (bool=false, int=US_Disk_DB_Controls::Default, const US_Project &=US_Project())
	Generic constructor for the US_ProjectGui class. To instantiate the class a calling function must provide a structure to contain all the data. More...

	~US_ProjectGui ()
	Cleans up when the project dialog is closed. More...

Public Member Functions inherited from US_WidgetsDialog
	US_WidgetsDialog (QWidget *, Qt::WindowFlags)

QLabel *	us_label (const QString &, int=0, int=QFont::Bold)

QLabel *	us_textlabel (const QString &, int=-1, int=QFont::Bold)

QLabel *	us_banner (const QString &, int=0, int=QFont::Bold)

QPushButton *	us_pushbutton (const QString &, bool=true, int=0)

QTextEdit *	us_textedit (void)

QLineEdit *	us_lineedit (const QString &=0, int=0, bool=false)

void	us_setReadOnly (QLineEdit *, bool=true)

void	us_setReadOnly (QTextEdit *, bool=true)

QListWidget *	us_listwidget (int=0)

QGridLayout *	us_checkbox (const QString &, QCheckBox *&, bool=false)

QGridLayout *	us_radiobutton (const QString &text, QRadioButton *&rb, bool state=false)

QProgressBar *	us_progressBar (int, int, int=0)

QComboBox *	us_comboBox (void)

QLCDNumber *	us_lcd (int, int=0)

QwtCounter *	us_counter (int, double, double, double=0.0)

QwtPlot *	us_plot (const QString &, const QString &=QString(), const QString &=QString())

QwtPlotGrid *	us_grid (QwtPlot *)

QwtPlotCurve *	us_curve (QwtPlot *, const QString &)

QwtPlotPicker *	us_picker (QwtPlot *)

QTabWidget *	us_tabwidget (int=0, int=QFont::Bold)

Public Attributes
QList< ProjectInfo >	info
	Information to populate the project list widget. More...

int	investigatorID
	Stores the ID of the current investigator. More...

US_Project	project
	Stores all the information about the project. More...

QStringList	IDs
	The IDs of the items in the project list. More...

QStringList	descriptions
	The descriptions in the project list. More...

QStringList	GUIDs
	The GUIDs of the items in the project list. More...

QStringList	filenames
	The filenames associated with disk saves. More...

QMap< QListWidgetItem *, int >	projectMap
	Maps the IDs with the listwidget items. More...

Public Attributes inherited from US_WidgetsDialog
US_Global	g
	Connect to global memory and make the values accessible. More...

QPalette	vlgray
	Very light gray palette for read-only line edits. More...

Private Slots
void	reset (void)

void	enableButtons (void)

void	resetAll (void)

void	accept (void)

void	cancel (void)

void	loadDisk (void)

void	loadDB (void)

void	loadProjects (void)

void	db_error (const QString &)

void	help (void)

Private Attributes
bool	signal

bool	text_changed

US_Help	showHelp

QTabWidget *	tabWidget

US_ProjectGuiGeneral *	generalTab

US_ProjectGuiGoals *	goalsTab

US_ProjectGuiMolecules *	moleculesTab

US_ProjectGuiPurity *	purityTab

US_ProjectGuiExpense *	expenseTab

US_ProjectGuiBufferComponents *	bufferComponentsTab

US_ProjectGuiSaltInformation *	saltInformationTab

US_ProjectGuiAUC_questions *	auc_questionsTab

US_ProjectGuiExpDesign *	expDesignTab

US_ProjectGuiNotes *	notesTab

QPushButton *	pb_accept

Detailed Description

This class provides the ability to enter/edit the project parameters.

Definition at line 338 of file us_project_gui.h.

Constructor & Destructor Documentation

US_ProjectGui::US_ProjectGui	(	bool	signal_wanted = `false`,
		int	select_db_disk = `US_Disk_DB_Controls::Default`,
		const US_Project &	dataIn = `US_Project()`
	)

Generic constructor for the US_ProjectGui class. To instantiate the class a calling function must provide a structure to contain all the data.

Parameters

signal_wanted	A boolean value indicating whether the caller wants a signal to be emitted
select_db_disk	Indicates whether the default search is on the local disk or in the DB
dataIn	A reference to a structure that contains the currently selected project information.

Definition at line 13 of file us_project_gui.cpp.

US_ProjectGui::~US_ProjectGui ( )

Cleans up when the project dialog is closed.

Definition at line 162 of file us_project_gui.cpp.

Member Function Documentation

void US_ProjectGui::accept ( void )

privateslot

Definition at line 248 of file us_project_gui.cpp.

void US_ProjectGui::cancel ( void )

privateslot

Definition at line 268 of file us_project_gui.cpp.

void US_ProjectGui::cancelProjectGuiSelection ( void )

signal

The signal that is emitted when the user chooses to cancel the current selection. In this case all previously-entered information is erased.

void US_ProjectGui::db_error ( const QString & error )

privateslot

Definition at line 658 of file us_project_gui.cpp.

void US_ProjectGui::deleteProject ( void )

slot

Deletes the currently selected project from disk or db.

Definition at line 599 of file us_project_gui.cpp.

void US_ProjectGui::enableButtons ( void )

privateslot

Definition at line 200 of file us_project_gui.cpp.

void US_ProjectGui::help ( void )

inlineprivateslot

Definition at line 462 of file us_project_gui.h.

void US_ProjectGui::load ( void )

slot

Loads projects into the projects list widget.

Definition at line 317 of file us_project_gui.cpp.

void US_ProjectGui::loadDB ( void )

privateslot

Definition at line 386 of file us_project_gui.cpp.

void US_ProjectGui::loadDisk ( void )

privateslot

Definition at line 331 of file us_project_gui.cpp.

void US_ProjectGui::loadProjects ( void )

privateslot

Definition at line 424 of file us_project_gui.cpp.

void US_ProjectGui::newProject ( void )

slot

Creates a new project.

Definition at line 277 of file us_project_gui.cpp.

void US_ProjectGui::reset ( void )

privateslot

Definition at line 178 of file us_project_gui.cpp.

void US_ProjectGui::resetAll ( void )

privateslot

Definition at line 231 of file us_project_gui.cpp.

void US_ProjectGui::saveDescription ( const QString & )

slot

Updates the description associated with the current project.

Definition at line 513 of file us_project_gui.cpp.

void US_ProjectGui::saveProject ( void )

slot

Saves the project information from all tabs to disk or db.

Definition at line 531 of file us_project_gui.cpp.

void US_ProjectGui::selectProject ( QListWidgetItem * item )

slot

Handles when project listwidget item is selected.

Definition at line 449 of file us_project_gui.cpp.

void US_ProjectGui::source_changed ( bool db )

slot

Change data source (disk/db)

Definition at line 629 of file us_project_gui.cpp.

void US_ProjectGui::tabTextChanged ( const QString & = "" )

slot

Helps to keep track if the text in any tab has changed.

Definition at line 651 of file us_project_gui.cpp.

void US_ProjectGui::updateProjectGuiSelection ( US_Project & project )

signal

The signal that is emitted when the user chooses to accept the current choices. This information is passed back to the calling function.

Parameters

project A reference to a structure that contains the project information

void US_ProjectGui::use_db ( bool DB )

signal

A signal to indicate that the current disk/db selection has changed. /param DB True if DB is the new selection

Member Data Documentation

US_ProjectGuiAUC_questions* US_ProjectGui::auc_questionsTab

private

Definition at line 421 of file us_project_gui.h.

US_ProjectGuiBufferComponents* US_ProjectGui::bufferComponentsTab

private

Definition at line 419 of file us_project_gui.h.

QStringList US_ProjectGui::descriptions

The descriptions in the project list.

Definition at line 379 of file us_project_gui.h.

US_ProjectGuiExpDesign* US_ProjectGui::expDesignTab

private

Definition at line 422 of file us_project_gui.h.

US_ProjectGuiExpense* US_ProjectGui::expenseTab

private

Definition at line 418 of file us_project_gui.h.

QStringList US_ProjectGui::filenames

The filenames associated with disk saves.

Definition at line 381 of file us_project_gui.h.

US_ProjectGuiGeneral* US_ProjectGui::generalTab

private

Definition at line 414 of file us_project_gui.h.

US_ProjectGuiGoals* US_ProjectGui::goalsTab

private

Definition at line 415 of file us_project_gui.h.

QStringList US_ProjectGui::GUIDs

The GUIDs of the items in the project list.

Definition at line 380 of file us_project_gui.h.

QStringList US_ProjectGui::IDs

The IDs of the items in the project list.

Definition at line 378 of file us_project_gui.h.

QList< ProjectInfo > US_ProjectGui::info

Information to populate the project list widget.

Definition at line 374 of file us_project_gui.h.

int US_ProjectGui::investigatorID

Stores the ID of the current investigator.

Definition at line 375 of file us_project_gui.h.

US_ProjectGuiMolecules* US_ProjectGui::moleculesTab

private

Definition at line 416 of file us_project_gui.h.

US_ProjectGuiNotes* US_ProjectGui::notesTab

private

Definition at line 423 of file us_project_gui.h.

QPushButton* US_ProjectGui::pb_accept

private

Definition at line 425 of file us_project_gui.h.

US_Project US_ProjectGui::project

Stores all the information about the project.

Definition at line 376 of file us_project_gui.h.

QMap< QListWidgetItem*, int > US_ProjectGui::projectMap

Maps the IDs with the listwidget items.

Definition at line 383 of file us_project_gui.h.

US_ProjectGuiPurity* US_ProjectGui::purityTab

private

Definition at line 417 of file us_project_gui.h.

US_ProjectGuiSaltInformation* US_ProjectGui::saltInformationTab

private

Definition at line 420 of file us_project_gui.h.

US_Help US_ProjectGui::showHelp

private

Definition at line 410 of file us_project_gui.h.

bool US_ProjectGui::signal

private

Definition at line 407 of file us_project_gui.h.

QTabWidget* US_ProjectGui::tabWidget

private

Definition at line 412 of file us_project_gui.h.

bool US_ProjectGui::text_changed

private

Definition at line 408 of file us_project_gui.h.

The documentation for this class was generated from the following files:
