A dialog class to select a model and load its distribution data. More...

#include "us_mrecs_loader.h"

Inheritance diagram for US_MrecsLoader:

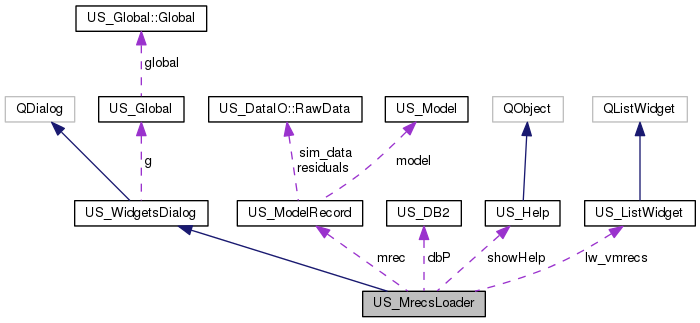

Collaboration diagram for US_MrecsLoader:

Classes
class	MrecsDesc

Public Member Functions
	US_MrecsLoader (bool, QString &, VEC_MRECS &, QString &, const QString="", const QString="")
	Main constructor for dialog to select a model records entry and load its mrecs data. More...

Public Member Functions inherited from US_WidgetsDialog
	US_WidgetsDialog (QWidget *, Qt::WindowFlags)

QLabel *	us_label (const QString &, int=0, int=QFont::Bold)

QLabel *	us_textlabel (const QString &, int=-1, int=QFont::Bold)

QLabel *	us_banner (const QString &, int=0, int=QFont::Bold)

QPushButton *	us_pushbutton (const QString &, bool=true, int=0)

QTextEdit *	us_textedit (void)

QLineEdit *	us_lineedit (const QString &=0, int=0, bool=false)

void	us_setReadOnly (QLineEdit *, bool=true)

void	us_setReadOnly (QTextEdit *, bool=true)

QListWidget *	us_listwidget (int=0)

QGridLayout *	us_checkbox (const QString &, QCheckBox *&, bool=false)

QGridLayout *	us_radiobutton (const QString &text, QRadioButton *&rb, bool state=false)

QProgressBar *	us_progressBar (int, int, int=0)

QComboBox *	us_comboBox (void)

QLCDNumber *	us_lcd (int, int=0)

QwtCounter *	us_counter (int, double, double, double=0.0)

QwtPlot *	us_plot (const QString &, const QString &=QString(), const QString &=QString())

QwtPlotGrid *	us_grid (QwtPlot *)

QwtPlotCurve *	us_curve (QwtPlot *, const QString &)

QwtPlotPicker *	us_picker (QwtPlot *)

QTabWidget *	us_tabwidget (int=0, int=QFont::Bold)

Private Slots
int	load_mrecs (VEC_MRECS &, int)
	Load mrecs at a given index. More...

QString	concat_description (int)
	Get a description of the mrecs at a given index. More...

void	list_vmrecs (void)

void	msearch (const QString &)

void	cancelled (void)

void	accepted (void)

void	change_edit (bool)

void	row_selected (int)

void	delete_mrecs (void)

void	help (void)

int	mrecsIndex (QString mdesc, QList< MrecsDesc >)

void	show_mrecs_info (void)

Private Attributes
bool	loadDB

QString &	dsearch

VEC_MRECS &	omrecs

QString &	odescr

QString	editGUID

QString	runID

US_DB2 *	dbP

US_Help	showHelp

QList< MrecsDesc >	mrecs_descriptions

QList< MrecsDesc >	mrecs_descrs_recs

VEC_MRECS	mrecs

US_ModelRecord	mrec

QString	mrdesc

QPushButton *	pb_filtvmrecs

QPushButton *	pb_delete

QPushButton *	pb_details

QPushButton *	pb_accept

QLineEdit *	le_mfilter

QCheckBox *	ck_edit

QCheckBox *	ck_unasgn

US_ListWidget *	lw_vmrecs

int	db_id1

int	db_id2

int	sel_row

bool	do_edit

bool	do_unasgn

bool	can_edit

QString	reqGUID

QStringList	mdescrs

Additional Inherited Members
Public Attributes inherited from US_WidgetsDialog
US_Global	g
	Connect to global memory and make the values accessible. More...

QPalette	vlgray
	Very light gray palette for read-only line edits. More...

Detailed Description

A dialog class to select a model and load its distribution data.

Definition at line 19 of file us_mrecs_loader.h.

Constructor & Destructor Documentation

US_MrecsLoader::US_MrecsLoader	(	bool	dbSrc,
		QString &	search,
		VEC_MRECS &	amrecs,
		QString &	adescr,
		const QString	eGUID = `""`,
		const QString	arunID = `""`
	)

Main constructor for dialog to select a model records entry and load its mrecs data.

Parameters

dbSrc	Flag: default models source to database
search	List search filter string
amrecs	Output loaded mrecs vector
adescr	Output selected model description string
eGUID	Edit GUID for filtering on Edit children
arunID	Run ID for limiting local file directory

Definition at line 14 of file us_mrecs_loader.cpp.

Member Function Documentation

void US_MrecsLoader::accepted ( void )

privateslot

Definition at line 644 of file us_mrecs_loader.cpp.

void US_MrecsLoader::cancelled ( void )

privateslot

Definition at line 637 of file us_mrecs_loader.cpp.

void US_MrecsLoader::change_edit ( bool ckedit )

privateslot

Definition at line 799 of file us_mrecs_loader.cpp.

QString US_MrecsLoader::concat_description ( int index )

privateslot

Get a description of the mrecs at a given index.

Parameters

index Index in list of mrecs entries loaded (0,...,count-1)

Returns: QString that concatenates MrecsDesc information. First character is separator. Remaining fields in the string, available with QString::section(), are: 1,1 - Description string; 2,2 - Mrecs file name (empty if from db); 3,3 - GUID of mrecs; 4,4 - db ID (-1 if from disk). 5,5 - GUID of related Edit;

Definition at line 242 of file us_mrecs_loader.cpp.

void US_MrecsLoader::delete_mrecs ( void )

privateslot

Definition at line 819 of file us_mrecs_loader.cpp.

void US_MrecsLoader::help ( void )

inlineprivateslot

Definition at line 117 of file us_mrecs_loader.h.

void US_MrecsLoader::list_vmrecs ( void )

privateslot

Definition at line 260 of file us_mrecs_loader.cpp.

int US_MrecsLoader::load_mrecs	(	VEC_MRECS &	mrecs,
		int	index
	)

privateslot

Load mrecs at a given index.

Parameters

mrecs	Mrecs to load from given index
index	Index in list of models to load (0,...,count-1)

Returns: status flag for load

Definition at line 113 of file us_mrecs_loader.cpp.

int US_MrecsLoader::mrecsIndex	(	QString	mdesc,
		QList< MrecsDesc >	mds
	)

privateslot

Definition at line 683 of file us_mrecs_loader.cpp.

void US_MrecsLoader::msearch ( const QString & search_string )

privateslot

Definition at line 788 of file us_mrecs_loader.cpp.

void US_MrecsLoader::row_selected ( int row )

privateslot

Definition at line 809 of file us_mrecs_loader.cpp.

void US_MrecsLoader::show_mrecs_info ( void )

privateslot

Definition at line 700 of file us_mrecs_loader.cpp.

Member Data Documentation

bool US_MrecsLoader::can_edit

private

Definition at line 83 of file us_mrecs_loader.h.

QCheckBox* US_MrecsLoader::ck_edit

private

Definition at line 72 of file us_mrecs_loader.h.

QCheckBox* US_MrecsLoader::ck_unasgn

private

Definition at line 73 of file us_mrecs_loader.h.

int US_MrecsLoader::db_id1

private

Definition at line 77 of file us_mrecs_loader.h.

int US_MrecsLoader::db_id2

private

Definition at line 78 of file us_mrecs_loader.h.

US_DB2* US_MrecsLoader::dbP

private

Definition at line 42 of file us_mrecs_loader.h.

bool US_MrecsLoader::do_edit

private

Definition at line 81 of file us_mrecs_loader.h.

bool US_MrecsLoader::do_unasgn

private

Definition at line 82 of file us_mrecs_loader.h.

QString& US_MrecsLoader::dsearch

private

Definition at line 37 of file us_mrecs_loader.h.

QString US_MrecsLoader::editGUID

private

Definition at line 40 of file us_mrecs_loader.h.

QLineEdit* US_MrecsLoader::le_mfilter

private

Definition at line 70 of file us_mrecs_loader.h.

bool US_MrecsLoader::loadDB

private

Definition at line 36 of file us_mrecs_loader.h.

US_ListWidget* US_MrecsLoader::lw_vmrecs

private

Definition at line 75 of file us_mrecs_loader.h.

QStringList US_MrecsLoader::mdescrs

private

Definition at line 87 of file us_mrecs_loader.h.

QString US_MrecsLoader::mrdesc

private

Definition at line 63 of file us_mrecs_loader.h.

US_ModelRecord US_MrecsLoader::mrec

private

Definition at line 62 of file us_mrecs_loader.h.

VEC_MRECS US_MrecsLoader::mrecs

private

Definition at line 61 of file us_mrecs_loader.h.

QList< MrecsDesc > US_MrecsLoader::mrecs_descriptions

private

Definition at line 58 of file us_mrecs_loader.h.

QList< MrecsDesc > US_MrecsLoader::mrecs_descrs_recs

private

Definition at line 59 of file us_mrecs_loader.h.

QString& US_MrecsLoader::odescr

private

Definition at line 39 of file us_mrecs_loader.h.

VEC_MRECS& US_MrecsLoader::omrecs

private

Definition at line 38 of file us_mrecs_loader.h.

QPushButton* US_MrecsLoader::pb_accept

private

Definition at line 68 of file us_mrecs_loader.h.

QPushButton* US_MrecsLoader::pb_delete

private

Definition at line 66 of file us_mrecs_loader.h.

QPushButton* US_MrecsLoader::pb_details

private

Definition at line 67 of file us_mrecs_loader.h.

QPushButton* US_MrecsLoader::pb_filtvmrecs

private

Definition at line 65 of file us_mrecs_loader.h.

QString US_MrecsLoader::reqGUID

private

Definition at line 85 of file us_mrecs_loader.h.

QString US_MrecsLoader::runID

private

Definition at line 41 of file us_mrecs_loader.h.

int US_MrecsLoader::sel_row

private

Definition at line 79 of file us_mrecs_loader.h.

US_Help US_MrecsLoader::showHelp

private

Definition at line 44 of file us_mrecs_loader.h.
